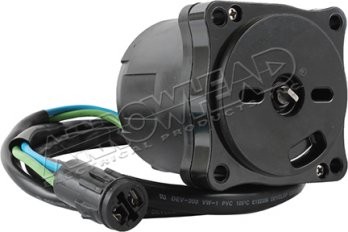

Tilt & Trim Motor for Honda Marine Engines | OEM 36120-ZY3-013
€215.03
Brand new aftermarket Tilt & Trim Motor for Honda Outboard Motors
Used on the following applications:
Honda
BF200 (2002-ON)
BF225 (2002-ON)
Replaces the genuine manafactorers part numbers:
Honda
36120-ZY3-013
For full applications/interchanges listings, please see our part applicationfitment section below.
Out of stock
Description
Unit Type
Tilt &
Trim Motor
Part Type
UNIT
Voltage
12
Dimension
Mounting Holes 66mm On Center
Mounting Ring 71mm OD
Armature Shaft Blade 8mm L x 2.6mm W x 5.7mm T
Field Case OD 79mm (Approx.)
Field Case Length 90mm (To Rear Tip)
Manufacturer
HONDA
Brief
HONDA BF200, BF225 ENGINES 2002-ON
Detailed
The TRM0104, TRM0105 and TRM0106 Appear to Be the Same, Except for the Cord Length.
