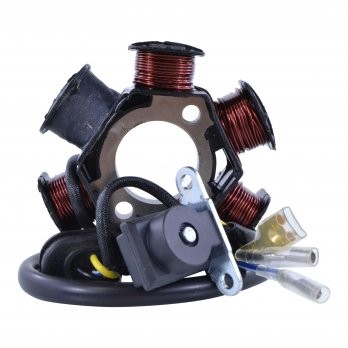

Stator | Honda | XR 80 R/CRF 80 F | 1993-2013
€98.66
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Rubber grommet included
Used on the following applications:
HONDA
XR 80 R (1993-2003)
CRF 80 F (2004-2013)
Replaces these genuine manufacturers part numbers:
HONDA
31120-GN1-691
For full application / interchanges listing, please see our part Application / Fitment section
Out of stock
Description
Dimensions :
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 32 mm
Length of wires stator to grommet : 185 mm
Length of wires grommet to terminals : 355 mm
Length of pickup coil’s wire to grommet : 78 mm
Other specifications :
Number of wires : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Ground = 0.4 ohms +-20%
Pickup : Blue/Yellow to Ground = 120 ohms +-20%
Source : Black/Red to Ground = 500 ohms +-20%
