Honda TRX420 Rancher FA | FPA Generator Stator | Replaces 31120-HP7-A01
€128.49

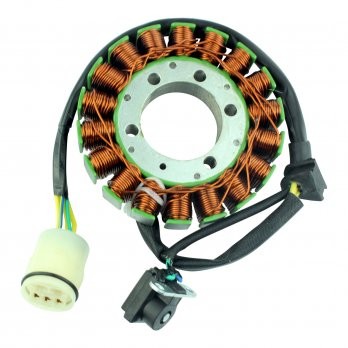

Brand new generator stator
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested
One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Used on
Honda
TRX 420 Rancher FA
2009
-2014
TRX 420 Rancher FPA
2009
-2014
Replaces the following OE reference numbers
31120-HP7-A00
Out of stock
Description
Dimensions :
Interior diameter : 42mm
Exterior diameter : 106mm
Thickness : 20mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 250mm
Length of pickup coil’s wire to grommet : 80mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue to Green = 115ohms +/-20%
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
