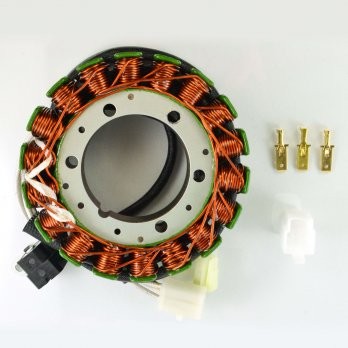

Generator Stator | Yamaha | V Star 650 Custom/Sliverado/Classic/Midnight | Custom | 2004-2016
€138.51
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
Used on the following applications:
YAMAHA
V Star 650 Custom (2004-2016)
V Star 650 Classic (2004-2010)
V Sar 650 Midnight Custom (2005-2010)
V Star 650 Silverado (2004-2010)
Replaces these genuine manufacturers part numbers:
YAMAHA
5SC-81410-00-00
5SC-81410-01-00
5SC-81410-02-00
5SC-81410-03-00
For full application / interchanges list
Out of stock
Description
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 235 mm
Length of wires grommet to plug : 736 mm
Length of pickup coil’s wire to grommet : 200 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : White to Black = 0.35 ohms +-20%
