Stator | Suzuki | RM 125 | 2005-2008
€158.43

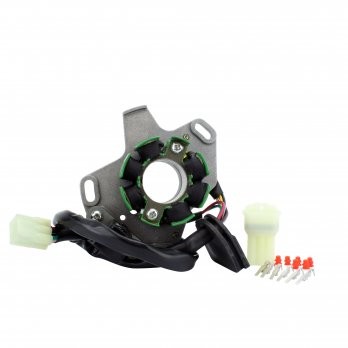

Replacement Stator Assembly | SUZUKI
Used on the following applications:
SUZUKI
RM 125 2005-2008
Replaces these genuine manufacturers part numbers:
32101-36F30
For full application / interchanges listing, please see our part Application / Fitment section below
Out of stock
Description
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 12 mm
Length of wires stator to grommet : 15 mm
Length of wires grommet to plug : 530 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black/White = 0.4 ohms +-20%
Pickup : Red to Green = 100 ohms +-20%
Source : Black/Red to Red/White = 32 ohms +-20%
