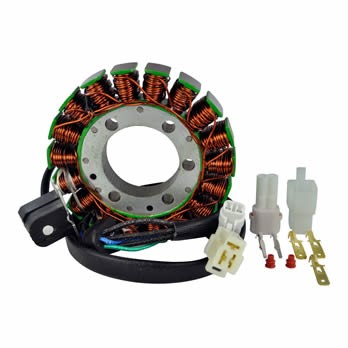

Stator Suzuki LTR 450 Z Quadracer 2006-2009
€138.51
Brand new stator
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All product shipped are tested
One year limited warranty
PLEASE NOTE : Our product is slightly different that the OEM part
OEM Part : 107.30mm
Our Part : 102.80mm
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Out of stock
Description
PLEASE NOTE : Our product is slightly different that the OEM part OEM Part : 107.30mm
Our Part : 102.80mm
Number of wires : 5
Number of terminals : 5
Alternator : Black to Black = 0.4 ohms+/- 20%
Alternator : Black to Ground = O.L ON DISPLAY
Pick up : Green to Blue = 200 ohms+/- 20%
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
