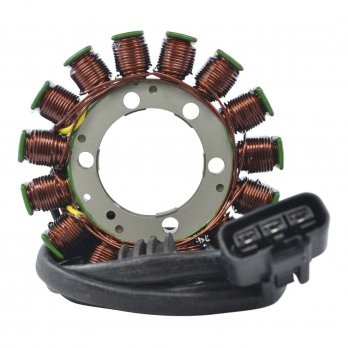

Stator Coil for Yamaha YFZ-R1 2009-14 | OEM 14B-81410-00-00
€168.34
Brand new aftermarket stator
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200°C.
Connector included.
Rubber grommet included.
All products shipped, are tested.
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective & a major cause for repetitive electrical issues.
Used on the following applications:
Yamaha
YFZ-R1 (2009-14)
YFZ-R1 LE (2010)
Replaces these genuine manufacturers part numbers:
Yamaha
Out of stock
Description
Unit Type
Part
Part Type
STATOR COIL
Dimensions
Internal diameter: 43.4mm
External diameter: 105mm
Thickness: 16.5mm
Length of wires:
Stator to grommet: 100mm
Grommet to plug: 1000mm
Other
Number of wires: 3
Number of plugs: 1
Number of pins: 4
Wire to wire resistance:
Alternator = White to white = 0.4ohms +/-20%
Brief
Yamaha YFZ-R1 (2009-14)
Installation
Before installing your new stator
Check the AC output of the stator.
Replace any burnt or corroded connectors on the stator & regulator
Check & repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator may use a different wiring colour code to your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations
The stator is deisgned as a direct plug-in replacement & should be used as such.
When bolting stator in, always use locking compound.
If our stator includes as pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
