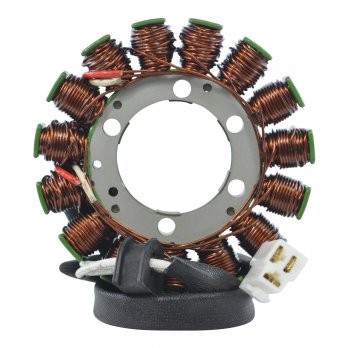

Stator Coil for Suzuki GSX-R1000 2005-08 | OEM 31401-41G00
€158.43
Brand NEW Stator
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200°C.
Connector included.
Rubber grommet included.
All products shipped, are tested.
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENETS.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective & a major cause for repetitive electrical issues.
Used on the following applications:
Suzuki
GSX-R1000 (2005-08)
Replaces these genuine manufacturers part numbers:
Suzuki
31401-41G10
Out of stock
Description
Unit Type
Part
Part Type
STATOR COIL
Voltage
12
Dimension
Internal diameter: 42mm
External diameter: 105mm
Thickness: 16mm
Length of wires:
Stator to grommet: 120mm
Grommet to plug: 330mm
Other
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Wire to wire resistance:
Alternator: White to White = 0.4ohms +/-20%
Brief
Suzuki GSX-R1000 (2005-08)
Installation
Before installing your new stator
Check the AC output of the stator.
Replace any burnt or corroded connectors on the stator & regulator
Check & repair any melted wiring
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire colour code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting the stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation;
we suggest as close as possible no less than 0.0010″.
