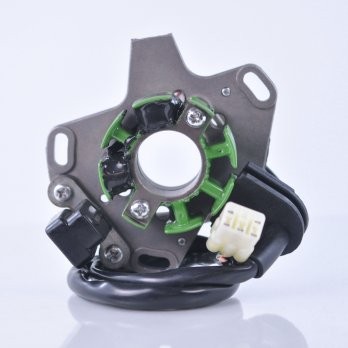

Stator | Suzuki | RM 125
€138.51
Brand NEW Stator Unit
Used on the following applications:
SUZUKI
RM 125 (2002-2004)
Replaces these genuine manufacturers part numbers:
SUZUKI
32101-36F10
For full application / interchanges listing, please see our part Application / Fitment section below
Out of stock
Description
Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 16mm
Length of wires stator to grommet : 12mm
Length of wires grommet to plug : 425mm
Length of pickup coil’s wire to grommet : 60mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
Wire to wire resistance :
Pickup : Red to Green = 102ohms +/-20%
Source : Red/White to Black/Red = 26ohms +/-20%
